January 30, 2008
Production is slated to begin in late 2008.
“The Saturn Vue Green Line 2 Mode challenges the notion that a compact SUV can’t be both powerful and efficient,” said Jill Lajdziak, Saturn general manager. “Customers tell us they want a compact SUV that will respect the environment and save money at the gas pump, but they don’t want to give up performance and utility. We’ve responded with the Vue Green Line 2 Mode.”

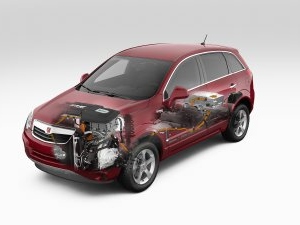

The 2009 Saturn Vue Green Line 2 Mode sports the same European-inspired design language of the non-hybrid Vue, completely redesigned for the 2008 model year. Subtle exterior changes include “2 Mode” badging on the front doors and rear liftgate; and lightweight aluminum alloy wheels and low-rolling resistance tires that enhance fuel economy. The Vue Green Line 2 Mode’s appearance is further accented by chrome door handles, chrome dual exhaust tips and chrome skid plates on the front and rear lower fascia.
The Vue Green Line 2 Mode features technologies and refinements in the fuel and exhaust systems that classify it as a Partial Zero Emissions Vehicle (PZEV) in the state of California and other states that have adopted California’s motor vehicle emissions rules. When it arrives in dealer showrooms in the fourth quarter of 2008, the Vue Green Line 2 Mode will be Saturn’s third hybrid, joining the Vue Green Line 4-cylinder hybrid SUV and the Aura Green Line sedan.
The Vue Green Line 2 Mode is GM’s first application of two-mode technology on a front-wheel-drive vehicle. The system is currently on the V-8-equipped Chevrolet Tahoe 2 Mode and GMC Yukon 2 Mode full-size SUVs, and becomes available in 2008 on the Cadillac Escalade 2 Mode luxury SUV and Chevrolet Silverado 2 Mode full-size pickup.
How the Vue Green Line 2 Mode Hybrid works

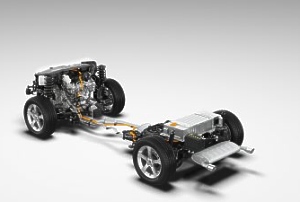

Unlike single-mode hybrid technology found in competitors’ SUVs, the two-mode system maximizes city and highway fuel economy by integrating two electric continuously variable modes with four fixed mechanical gear ratios. The system consists of twin, active-cooled 55-kW electric motors integrated into the 2MT70 automatic transmission. Energy to power the motors comes from a 1.8 kWh, 300V nickel-metal hydride battery pack, which consists of 22 nickel metal hydride modules and is packaged behind the second-row seat below the cargo floor.
The transmission is mated to GM’s 3.6L V-6 VVT with direct injection technology. In the first mode, at low speed and light load, the Vue Green Line 2 Mode operates in one of three ways depending on conditions and battery charge level: all-electric power, internal combustion engine power or a combination of the two. All reverse operation is driven by the electric motors.
The second mode is used primarily at highway speeds to optimize fuel economy. It provides electric assist in addition to six-cylinder power when conditions demand it, such as trailer towing and climbing steep grades, and to allow the engine to run at its most efficient point under less-demanding conditions.
No engine speed changes are necessary for the mode shift to occur. The result is exceptionally smooth, seamless acceleration and responsiveness. At all times, the system’s Hybrid Optimizing System (HOS) collects torque-based data, deciphers it, then determines the most fuel-efficient means of propelling the Vue Green Line 2 Mode.
Direct injection V-6 boosts efficiency
The Vue Green Line 2 Mode’s standard engine is an advanced 3.6L V-6 VVT with direct injection, a member of GM’s family of high-feature V-6s. The direct injection engine uses regular unleaded fuel and represents one of the most sophisticated applications of its kind on a hybrid SUV.
Direct injection delivers fuel directly to the combustion chambers and permits a higher compression ratio, improving fuel efficiency. Additionally, the technology reduces cold-start hydrocarbon emissions by up to 25 percent.
The 3.6L VVT with direct injection also features a U.S. auto industry-first isolated fuel injector that greatly reduces the ticking noise associated with other direct injection engines. Other noise-reduction features include the use of acoustic foam in the engine valley and cover.
Intuitive displays keep drivers in the know
The Saturn Vue Green Line 2 Mode’s instrument panel lets drivers know that they’re behind the wheel of a sophisticated hybrid, yet with gauges that are easy to understand. An efficiency gauge replaces the tachometer, informing drivers of when they are achieving maximum fuel economy; whether the vehicle is in electric-only mode, engine-only mode or a combination of the two; and, because of the silent start as the key is turned, a telltale indicates when the vehicle is on and ready to drive.
In the center console, a full-color VGA power-flow graphic, which is integrated into an available navigation system, continuously informs the driver and passenger whether the vehicle is sending power to the wheels from the battery pack, engine or both. It also indicates when energy is being captured during braking.
Saturn’s hybrid family is growing
The Vue Green Line 2 Mode is the third hybrid to join the Saturn lineup. Other members of the Green Line family include the Vue (4-cylinder) Green Line and the Aura Green Line sedan. They are equipped with the affordable GM Hybrid system, which reduces fuel consumption using sophisticated controls and a unique electric motor/generator mated to a 2.4L Ecotec VVT four-cylinder engine and Hydra-Matic four-speed transmission.
(22 January, 2008)
