Mercedes-Benz B-Class 2005
The Compact Sports Tourer – an innovative car concept with a high level of spacious comfort and an exciting design for dynamic driving pleasure
Design, dynamism and dimensions – these are the outstanding features of the new B-Class, the Mercedes-Benz Compact Sports Tourer. This new model will appear in the showrooms of Mercedes-Benz outlets and authorised dealerships all over Europe in the summer of 2005.
This new Mercedes development takes the advantages of different vehicle concepts and combines them into an interesting and distinctive profile of its own: as a Compact Sports Tourer, the B-Class is a touring, family and recreational vehicle with incomparable added experience value in terms of design and dynamism.
The body has a length of 4270 millimetres, corresponding to the compact car class. Inside, however, the new Mercedes model offers more than other cars of comparable size in this segment in all comfort-related respects, e.g. shoulder-room, legroom and headroom.

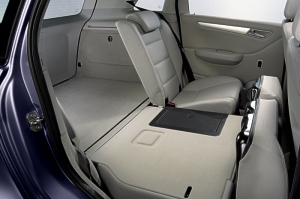

Occupants in the rear benefit from the long wheelbase (2778 millimetres); this allows a distance between seats and generous kneeroom which almost matches that in the S-Class. The B-Class also reaches new dimensions where variability and load capacity are concerned.
The top-of-the-line B 200 TURBO is equipped with a new two-litre, four-cylinder engine which delivers a maximum torque of 280 Newton metres from as little as 1800 rpm thanks to turbocharging and intercooling, and maintains this value over a wide engine speed range up to 4850 rpm. This means that the most powerful of the Compact Sports Tourers accelerates from standstill to 100 km/h in just 7.6 seconds, takes the fifth-gear sprint from 80 to 120 km/h in 7.3 seconds and achieves a maximum speed of 225 km/h.
The diesel line-up is headed by the B 200 CDI with 103 kW/140 hp, which has a remarkably high torque of 300 Newton metres. The newly developed turbodiesel with common-rail direct injection accelerates the Compact Sports Tourer from nought to 100 km/h in 9.6 seconds, and from 80 to 120 km/h in 10.0 seconds (in fifth gear). The maximum speed of the B 200 CDI is 200 km/h. Despite this superb performance the fuel consumption remains below the six-litre mark at 5.6 litres per 100 kilometres (NEDC combined consumption). The CDI models in the B-Class meet the stringent EU 4 exhaust emission limits even without a particulate filter, though Mercedes-Benz offers a maintenance-free diesel particulate filter system on request.
The new B 200 TURBO and the CDI models B 180 CDI and B 200 CDI are equipped with a six-speed manual transmission as standard. The newly developed, continuously variable AUTOTRONIC automatic transmission is optionally available for all engine variants of the B-Class.
Top-class technology for agile handling and outstanding safety
Typical Mercedes safety thanks to the sandwich concept
The unique sandwich concept, which achieves wonders where economy of space is concerned, is the centrepiece of the safety concept in the new B-Class. Intelligently arranging the engine and transmission in an inclined position partly in front of and partly beneath the passenger cell makes a greater effective front end length available for crash deformation. During a severe frontal impact the drive unit is not moved backwards towards the interior, but slides downwards along the likewise inclined pedal floor panel. Moreover, the sandwich concept has significant advantages in the event of a lateral collision because the occupants are seated approx. 200 millimetres higher – and therefore above the impact zone. This means that despite its compact exterior dimensions, the B-Class provides the level of occupant safety typically found in a Mercedes.
Adaptive, two-stage front airbags, belt tensioners in the front and on the outer rear seats, adaptive belt force limiters, active head restraints, ISOFIX child seat attachments and newly developed head/thorax sidebags round off the standard occupant protection system.
High-quality materials and extensive standard appointments

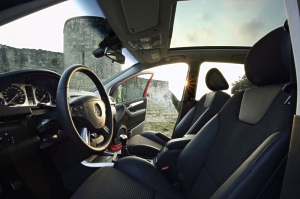

The interior appointments likewise correspond to the high standard set by Mercedes-Benz. The design and feel of the interior features complement each other, creating an atmosphere in which the occupants are immediately at ease to enjoy the high level of long-distance comfort. Standard specification includes air conditioning, a four-spoke steering wheel with multifunction buttons, an armrest between the front seats, power windows and tinted glass, plus high-quality trim of brushed aluminium on the centre console, tunnel and door panels.
Mercedes-Benz has grouped further design features which accentuate the sporty, elegant appearance or sporty attributes of the new B-Class into optionally available chrome and sports packages.
High technology from bi-xenon to THERMOTRONIC
High-tech systems from the Mercedes luxury class further enhance comfort and the driving experience in the new Compact Sports Tourer. Optionally available features include THERMOTRONIC automatic climate control, electrically adjustable front seats, leather upholstery and the COMAND APS or Audio 50 APS radio/navigation system.
A newly developed, panoramic louvred sunroof provides the occupants of the new B-Class with an open-air feeling as an optional extra, and in its closed position it also contributes to the light, friendly atmosphere in the interior of the Compact Sport Tourer. The roof aperture is around two thirds larger than that of a conventional sliding roof. A fixed panoramic roof with a grey-tinted, 0.6-square-metre glass panel is optionally available as an alternative to the sliding roof. On request the standard projection-beam headlamps behind their clear lenses can be upgraded with bi-xenon technology, the Active Light System and a cornering light function.
