Lincoln : Continental Concept

Lincoln Continental Concept: The Future Of Lincoln Design


LOS ANGELES, Jan. 3, 2002 - The Lincoln Continental concept, the ultimate expression of American Luxury and the culmination of nearly two years of research and development, was unveiled today at the Los Angeles Auto Show by Lincoln Mercury President Brian Kelley and Design Director Gerry McGovern.

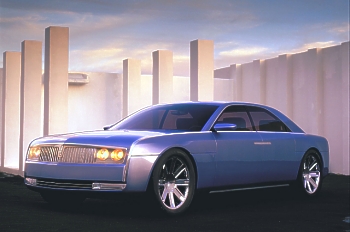

Lincoln Continental Concept
Click image for larger view

Continental is a powerful but understated executive car with unique proportions that optimize space for the elegant, sophisticated and supremely comfortable interior. The design embraces features from Lincoln's past, such as center opening doors, but the execution is thoroughly modern.

The new Lincolns are the 2003 Town Car, Navigator and Aviator. The first generation of vehicles to embrace the Continental's design philosophy will debut mid-decade.

Lincoln Continental Concept
Click image for larger view

A Unique Proportion

Two important goals of the Lincoln design team were to maximize interior space and optimize ingress and egress. This led to the creation of a unique proportion, in which the Continental's cabin is centered within the wheelbase. The passenger space is exceptionally large, the trunk is cavernous, and a powerful 6.0-liter V-12 engine resides under the hood.

Lincoln Continental Concept
Click image for larger view

The Continental's bodywork is finished in a color called Silver Sea Spray. Its surfaces are clean and uninterrupted, and a strong horizontal emphasis defines the front of the car. A signature Lincoln grille milled from aluminum incorporates four round headlamps that use an innovative remote light generator technology developed by Ford Motor Company in partnership with Philips Lighting.

In this system, light generated by a single source is transferred to each lamp by fiber optic cable. The technology requires less power than conventional halogen bulbs but produces two and a half times more light. Glare is reduced substantially because light dispersion is well controlled and the beam can be aimed precisely.

The outer edges of the hood rise slightly to meet chrome bodyside finishers that are applied with absolute precision. The sheer bodysides provide weight and strength and are interrupted only by subtly flared arches that wrap around 22-inch polished aluminum wheels and Continental tires. The elegant chrome finishers accentuate the car's length to add tension to the bodysides.

The Continental's horizontal emphasis continues at the rear of the car. A Lincoln star badge divides large LED lamps. The rectangular exhaust tips integrated into the valence subtly suggest that the Continental is powerful and capable.

The Continental presents several innovative solutions:

The powered center-opening doors are triggered by remote or simply by a touch of the flush aluminum door "handles." The Continental's doors operate independently and with both doors open, the pillarless aperture is almost six feet wide. All this is made possible by articulating hinges that open to 90 degrees and a ring frame that adds structural rigidity along the A-pillar, rear roof pillar, sill and roof rails.

Indirect fiber optic lighting in each door panel and headliner sets the cabin's mood. The rear roof pillar is precisely angled to provide the utmost privacy to rear seat passengers while still affording them a panoramic view out. The hydraulically powered decklid traces a parallelogram as it opens to maintain its horizontal orientation. This feature keeps the rear lamps visible at all times and allows for easy access to three sliding storage drawers fitted in the 20.5 cubic foot (580-liter) trunk.

A large luggage tray slides out of the trunk by remote control to present Zero Halliburton luggage and golf club cases.

The Continental's full-width instrument panel is built around reconfigurable displays for engine functions and vehicle systems, including concierge and telematics features, navigation and the THX-certified audio system. The chaplets that ring the speedometer and other gauges displays are fixed to the glass for a jewel-like effect.The concierge service allows passengers to check the weather, make restaurant reservations, seek route assistance or get personalized financial market updates. The telephone functions are hands-free. A mouse built into the console is used to navigate the displays.

The display system's sharply defined images are created by Organic Light Emitting Diode technology (OLED), developed for the car in partnership with Pioneer Electronics Corporation. The heart of OLED technology is a light emitting polymer film. Current is passed through the film by a matrix of electrodes to illuminate individual pixels, which can display in green, blue, orange and yellow.

System response time is very fast, so displays can be changed quickly. Other benefits of OLED include high visibility even in direct sunlight, a wide viewing angle up to 160 degrees and low power consumption. It is mercury-free.

In addition to the mouse, the center console also houses controls for the window lifts, power door openers and other functions. The upper section is for audio controls. The large central knob adjusts volume and the four small buttons select the source - AM/FM radio, compact disc or digital video disc. The central section is for the dual-zone climate control. The rear compartment has its own dedicated dual-zone climate and audio controls.

Comfort and Sophistication

The headliner and the Eames lounge chair-inspired seats are covered in full-grain aniline leather dyed a creamy hue called Rhode Island Sand. A translucent silk panel shades the overhead fiber optic light strip. The flooring is a close-sheared midnight blue sheepskin. The instrument panel and doors are trimmed in a combination of Rhode Island Sand and Midnight Blue leather. The dark leather helps mask the transition to the window glass.

Front and rear seat roominess is designed to be exceptional. The front seats are adjustable for height and rake, and have fore and aft travel of 10 inches (250 millimeters). The rear seating area could easily serve as the model for a corporate jet. The seats adjust fore and aft across a range of eight inches (200 millimeters) and can be reconfigured into a bed by folding down the center portion of the front seat back. The rear seat cushions also incorporate a tilt function to aid ingress and egress.

Built-in laptop tables stow in the console. The case holders built into the front seat backs fold down to allow an attaché to be opened without removing it from the sleeve.

A cabinet between the rear seats houses crystal and a drinks dispenser. Each rear door has a large umbrella holder and compartments that can be personalized. The Continental, for example, is fitted with cigar humidors.

The Culmination of a Two-Year Search

Research and development of the Lincoln Continental concept began in early 2000, shortly after dedicated Lincoln design, engineering and manufacturing organizations were established. The Lincoln design team began by exploring Lincoln's heritage.

"Between the 1940s and the 1960s, Lincoln Continentals were about beautiful proportions, elegance, sophistication and restraint. These all are qualities that are relevant today," McGovern says. "As Le Corbusier said, 'some pasts are the liveliest instigators of the present and the best springboards into the future.' That's an apt description of the role Lincoln's heritage played in the development of Lincoln's new design philosophy."

The exploration continued with the Lincoln MK 9 coupe, which was unveiled at the 2001 New York Auto Show. The MK 9 was developed concurrently with the Continental to demonstrate that the new design philosophy could be applied to different types of vehicles.

"The MK 9 is overtly sporty and the Continental is formal but both are bound together by Lincoln design cues, a common approach to surface development and an absolute obsession with precision," McGovern says. "These two concepts, as well as the work we have done in-studio with sport utilities and other types of vehicles, have convinced us that our design philosophy is 'stretchable,' and that we have completed our roadmap for the future."

All pictures: Ford Motor Company
