The F430 signals
the arrival of a brand new generation of Ferrari 8-cylinder
models. This new car takes Ferrari’s extraordinary achievements
with aluminium technology, begun with the 360 Modena, to a whole
new level, and offers a series of extremely significant innovations
directly derived from the Ferrari Formula 1 single-seaters.
Two of these innovations
are world firsts for production cars: the electronic differential
(E-Diff) and the steering wheel-mounted switch (better known
to the Formula 1 Scuderia’s drivers as “manettino”), which manages
the integrated systems governing vehicle dynamics.
Click image for larger view

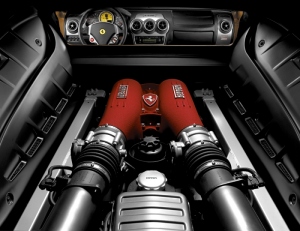

The other main characteristics
of the new F430 are its light, compact 4,300 cc 90° V8 engine, which
punches out 490 hp to achieve a specific output of 114 hp/litre, also
providing the new Ferrari berlinetta with a weight-to-power ratio of
2.8 kg/hp (dry weight); a braking system with carbon-ceramic discs for
optimal efficiency under extreme use (optional); a Formula 1-derived
gearbox that cuts gear shifting times down to 150 milliseconds allowing
the driver to make the very most of this truly high performance car
(0-62 mph acceleration in 4 seconds flat, a top speed in excess of 196
mph); and an aerodynamic design that embodies the very latest competition
technologies, specifically the flat underbody and large rear diffuser
to increase downforce.
Click image for
larger view
Click image for
larger view
Click image for
larger view
Click image for
larger view
Click image for
larger view
F430 TECHNICAL SPECIFICATIONS/
DIMENSIONS
Overall length: 4512 mm 177.6 in
Overall width: 1923 mm 75.7 in
Height: 1214 mm 47.8 in
Wheelbase: 2600 mm 102.4 in
Front track: 1669 mm 65.7 in
Rear track: 1616 mm 63.6 in
Kerb weight: 1450 kg 3197 lb
ENGINE
Type: 90° V8
Bore/stroke: 92 mm x 81 mm 3.62 x 3.19 in
Unit displacement: 538.5 cm3 32.86 cu in
Total displacement: 4,308 cm3 262.89 cu in
Compression ratio: 11.3:1
Maximum power: 360.4 kW (490 CV*) at 8500
rpm
Maximum torque: 465 Nm (47.4 kgm or 343 lbft)
at 5250 rpm
Specific horse power: 114 CV*/l
PERFORMANCE
Maximum speed: >315 km/h > 196 mph
0-100 km/h (0-62 mph): 4.0 s
* For reasons of homogeneity, engine power is expressed in kW,
in accordance with the International Systems of Units (SI),
and CV (cavalli = horse power). The brake horse power (bhp)
can be calculated as follows: 1kW = 1.34 bhp.
